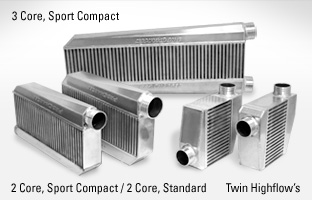

Plenums are available with inlets/outlets on the same
side or on opposite sides.
Please refer to chart for intercooler dimensions and
recommended maximum hp.
|
| |
Item
Description |
Tube
Diameter |
Recommended
Maximum HP |
Approx.
Dimensions
(W x H x D) |
| 2
Core, Standard |
2.5" |
475 |
18
x 12.5 x 3 |
| 2
Core, Standard |
3.0" |
550 |
18
x 12.5 x 3 |
| 2
Core, Sport Compact |
2.5" |
475 |
18.5
x 10 x 3 |
| Twin
Highflow |
2.5" |
800 |
11
x 9 x 3 |
| Twin
Highflow |
3.0" |
900 |
11
x 9 x 4.5 |
| 3
Core, Standard |
3.0" |
825 |
27
x 12.5 x 3 |
| 3
Core, Race |
3.0" |
950 |
27
x 15 x 3 |
| 3
Core, Race |
3.5" |
1050 |
27
x 15 x 3 |
| Air
to Air, 1300 HP |
3.5" |
1300 |
27.5
x 12 x 4.5 |
| Air
to Air, 1550 HP |
4.0" |
1550 |
27.5
x 12 x 6 |
| Air
to Water |
4.0" |
1800 |
9
x 19 x 13 |
| Air
to Water |
4.0" |
2200 |
13
x 25 x 13 |
| Universal
Tube Kit |
3.0" |
950 |
|
| Universal
Tube Kit |
3.5" |
1300 |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
